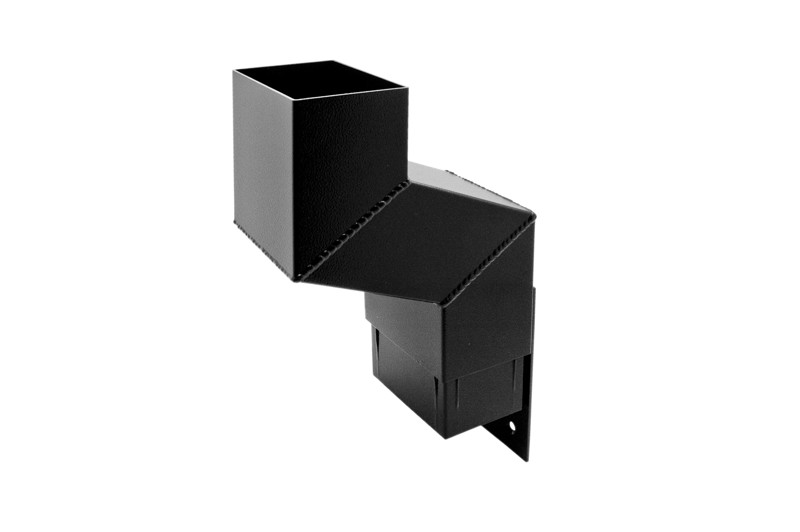

Provide dimensions, A to E as indicated on drawing. A fixing plate with fixing kit is included for on site positioning to required handing. For 102 x 76mm state if left/right handed or front/rear projection is required. For direct connection to gutter outlet or hopper use pipe socket RVR120NE.
All joints must be sealed using Alutec Joint sealant SC101
