Roof Outlet with Extended Grate 160mm⌀ Pipe Connection

Roof Outlet with Extended Grate 160mm⌀ Pipe Connection

Supplied with a PVCu pipe connector.
SC101 sealant required to seal the supplied PVCu threaded pipe connector to the underside of an outlet.
1 tube seals approximately 10 outlet joints.

There are 3 ways to obtain an estimate:

1/ List and send your requirements to us by selecting your products and quantities, clicking ‘Add to list’, then clicking ‘Request an Estimate’ when the list is complete.

2/ Send your requirements to us, including any supporting documents or files (architectural drawings etc), by completing this contact form.

3/ Produce your own estimate immediately with our Online Estimating Tool.

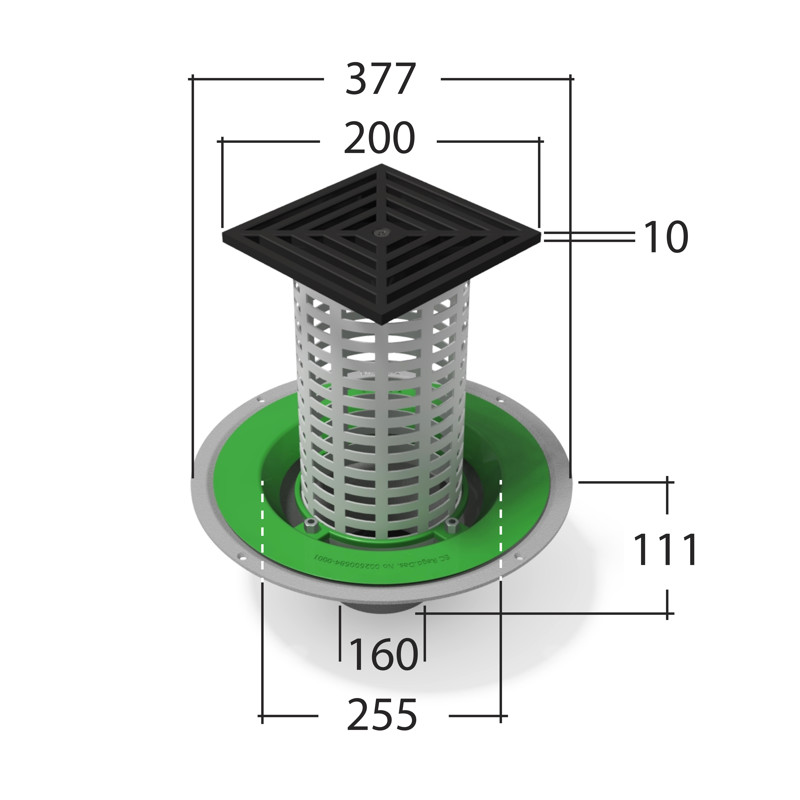

Product Code Dimensions (mm) Connection Size (mm) For Use With
AR160TG A: 377 x B: 111 x C: 160 x D: 255 x E: 200 x F: 10 x G: 255 (Max) Pipe Outside Diameter: 160mmø Inverted roofs, green roofs, terraces, podiums, walkways and paved areas
