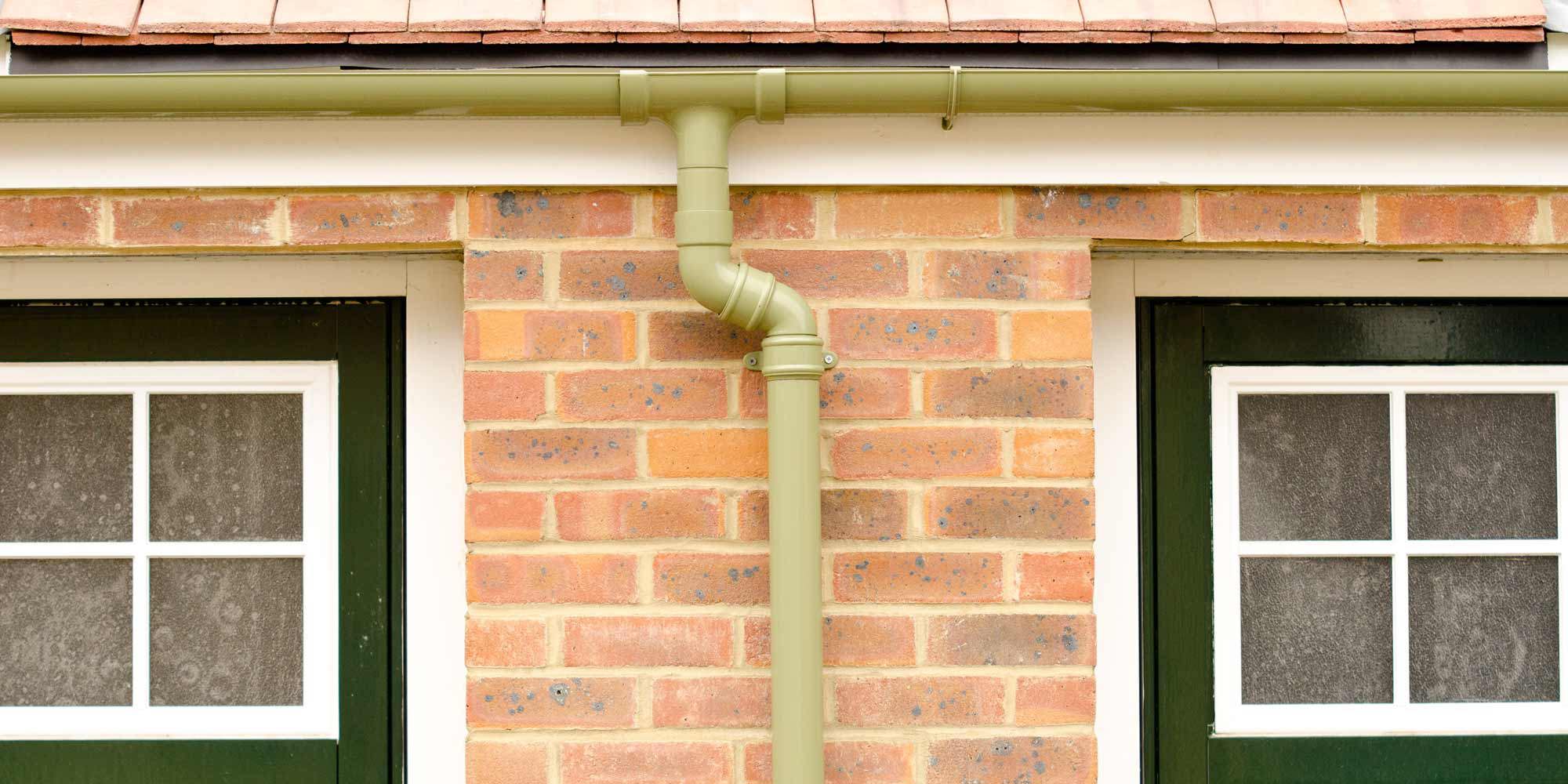

Evolve circular aluminium downpipe system
A 63mm circular aluminium downpipe system for use with the Evolve Half Round gutter
• Ideal for small to medium properties
• Flow rate of up to 1.8 l/s and 87m2 per downpipe
• 24 standard colours and hundreds more available on request
• Available at a lower price in the popular Heritage Black finish, which accurately replicates the appearance of cast iron
Related Information
Product List
Downpipe
To ensure your Marley Alutec system achieves its 50 year life expectancy, don't forget to order Marley Alutec Joint sealant and austenitic fixings. Go to Sundries, Tools & Accessories for a full listing
| Code | Size (mm) | Length (mm) |
|---|---|---|
| RT213 | 63 | 3000 |
Pipe socket
All joints must be sealed using Marley Alutec Joint sealant SC101
| Code | Description | Size (mm) | Dimensions (mm) |
|---|---|---|---|
| RT220 | Eared | 63 | A: 82 x B: 52 x C: 94 x D: 116 x E: 59 |
| Code | Description | Size (mm) | Dimensions (mm) |
|---|---|---|---|
| RT220NE | Non Eared | 63 | A: 82 x B: 52 |
Top bend
All joints must be sealed using Marley Alutec Joint sealant SC101
| Code | Size (mm) | Dimensions (mm) | Angle (0) |
|---|---|---|---|
| RT232 | 63 | A: 50 x B: 35 x C: 46 | 112.5 |
Bottom bend
All joints must be sealed using Marley Alutec Joint sealant SC101
| Code | Size (mm) | Dimensions (mm) | Angle (0) |
|---|---|---|---|
| RT292 | 63 | A: 40 x B: 64 x C: 40 | 112.5 |
Bend
All joints must be sealed using Marley Alutec Joint sealant SC101
| Code | Size (mm) | Dimensions (mm) | Angle (0) |
|---|---|---|---|
| RT230 | 63 | A: 37 x B: 27 x C: 46 | 92.5 |
Branch
All joints must be sealed using Marley Alutec Joint sealant SC101
| Code | Size (mm) | Dimensions (mm) | Angle (0) |
|---|---|---|---|
| RT242 | 63 | A: 95 x B: 26 x C: 115 | 112.5 |
Shoe
All joints must be sealed using Marley Alutec Joint sealant SC101
| Code | Size (mm) | Dimensions (mm) | Angle (0) |
|---|---|---|---|
| RT250 | 63 | A: 92 x B: 104 | 120 |
Access pipe
All joints must be sealed using Marley Alutec Joint sealant SC101
| Code | Size (mm) | Dimensions (mm) |
|---|---|---|
| RT260 | 63 | A: 300 x B: 140 x C: 105 |
Rainwater diverter
All joints must be sealed using Marley Alutec Joint sealant SC101
| Code | Size (mm) | Dimensions (mm) |
|---|---|---|
| RTD25 | 63 | A: 134 x B: 500 x C: 74 x D: 30 |
Hopper head (standard)
All joints must be sealed using Marley Alutec Joint sealant SC101
| Code | Size (mm) | Dimensions (mm) |
|---|---|---|
| RH110 | 63 | A: 250 x B: 180 x C: 180 x D: 59 |
