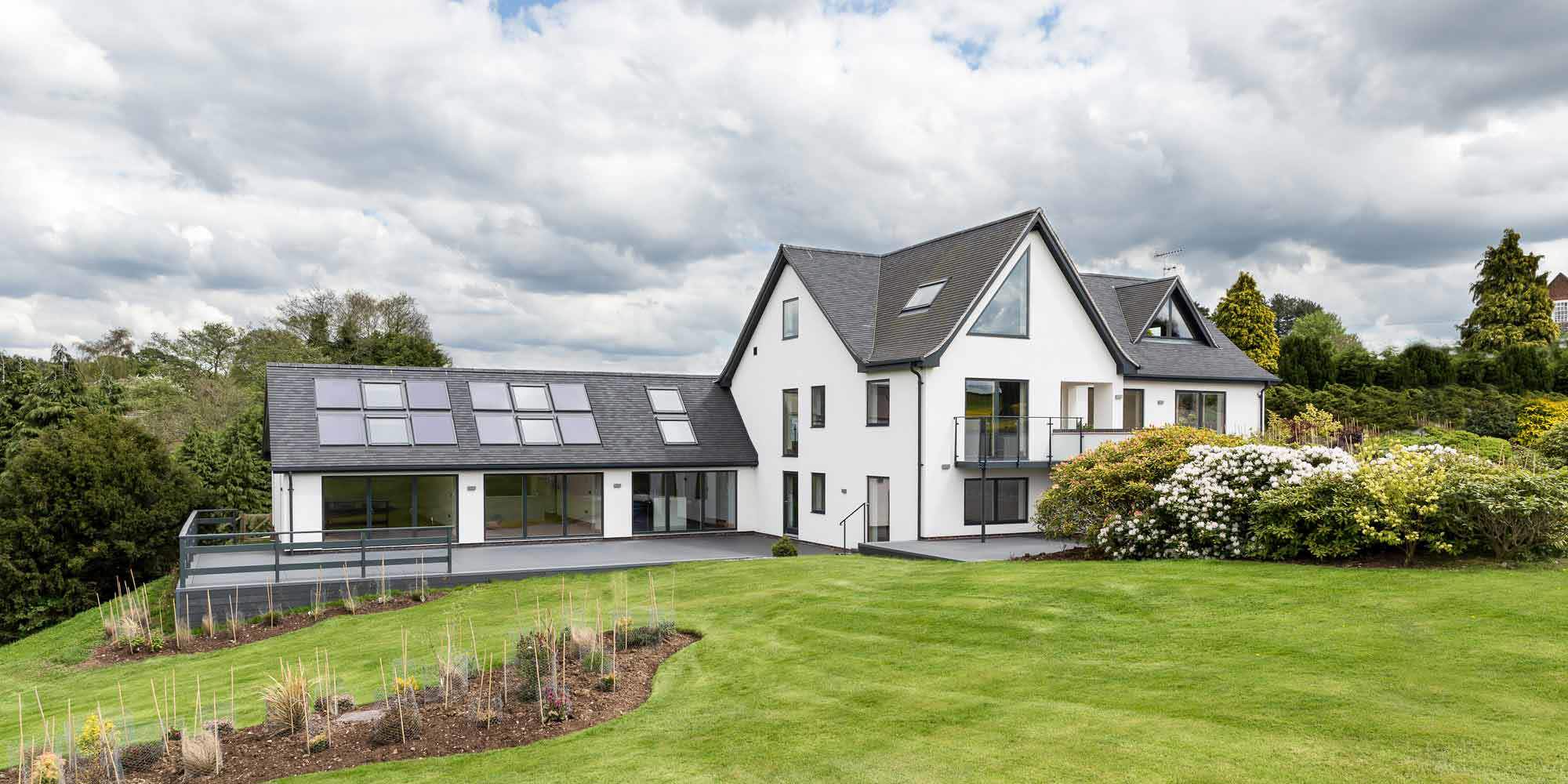

Aligator Deepflow gutter system
Aligator Deepflow aluminium guttering system with internal joints and concealed brackets offers a sleek and unobtrusive solution for modern building design
• Internal joints and concealed brackets for a completely smooth finish
• Ideal for medium to large properties
• Flow rate of up to 4.4 l/s and 209m2 per downpipe
• Life expectancy of 50 years or more
• Marine grade aluminium throughout. Highly corrosion resistant, it will never rust or need repainting
• 24 standard colours and hundreds more available on request
Compatible Downpipes
Related Information
Product List
Gutter
To ensure your Marley Alutec system achieves its 50 year life expectancy, don't forget to order Marley Alutec Joint sealant and austenitic fixings. Go to Sundries, Tools & Accessories for a full listing
| Code | Length (mm) | Dimensions (mm) |
|---|---|---|
| GD511 | 1000 | A: 130 x B: 80 |
| Code | Length (mm) | Dimensions (mm) |
|---|---|---|
| GD512 | 2000 | A: 130 x B: 80 |
| Code | Length (mm) | Dimensions (mm) |
|---|---|---|
| GD513 | 3000 | A: 130 x B: 80 |
Union
All joints must be sealed using Marley Alutec Joint sealant SC101
| Code | Dimensions (mm) |
|---|---|
| GD520 | A: 70 |
Fascia bracket
For linear alignment use Packing shim SC380. Adjustable rafter arm available, go to Sundries, tools and accessories for a full listing.
| Code | Dimensions (mm) |
|---|---|
| GD580 | A: 25 x B: 52 |
Angle
All joints must be sealed using Marley Alutec Joint sealant SC101
| Code | Description | Dimensions (mm) |
|---|---|---|
| GD530 | 90° Internal | A: 200 |
| Code | Description | Dimensions (mm) |
|---|---|---|
| GD531 | 90° External | A: 70 |
| Code | Description | Dimensions (mm) |
|---|---|---|
| GD535 | 135° Internal | A: 120 |
| Code | Description | Dimensions (mm) |
|---|---|---|
| GD536 | 135° External | A: 66 |
| Code | Description | Dimensions (mm) |
|---|---|---|
| GD539 | Non standard - available on request | Non standard |
Outlet
All joints must be sealed using Alutec Joint sealant SC101
| Code | Description | Dimensions (mm) | Outlet Centre (mm) |
|---|---|---|---|
| GD522 | 63mm Ø pipe connection | A: 200 x B: 70 | 70 |
| Code | Description | Dimensions (mm) | Outlet Centre (mm) |
|---|---|---|---|
| GD523 | 76mm Ø pipe connection | A: 200 x B: 70 | 70 |
| Code | Description | Dimensions (mm) | Outlet Centre (mm) |
|---|---|---|---|
| GD524 | 102mm Ø pipe connection | A: 200 x B: 70 | 70 |
| Code | Description | Dimensions (mm) | Outlet Centre (mm) |
|---|---|---|---|
| GD525 | 72x72mm pipe connection | A: 200 x B: 70 | 70 |
| Code | Description | Dimensions (mm) | Outlet Centre (mm) |
|---|---|---|---|
| GD526 | 102x76mm pipe connection | A: 200 x B: 70 | 70 |
| Code | Description | Dimensions (mm) | Outlet Centre (mm) |
|---|---|---|---|
| GD527 | 102x102mm pipe connection | A: 200 x B: 70 | 70 |
Stop end
All joints must be sealed using Alutec Joint sealant SC101
| Code | Dimensions (mm) |
|---|---|
| GD550 | A: 33 |
