Shower Outlet Systems

Shower Outlet Systems

Shower Outlet Systems

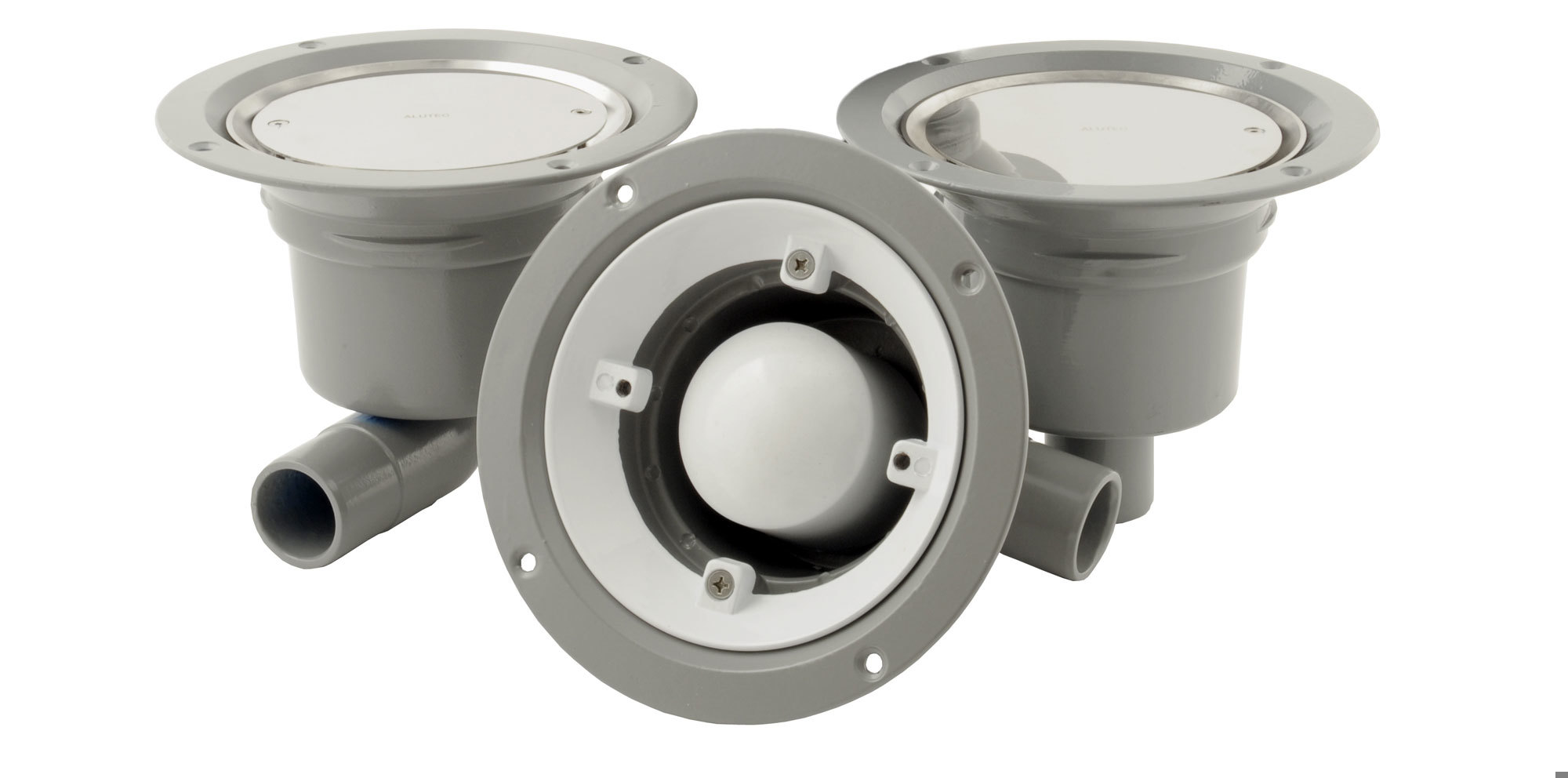

Comprehensive range of aluminium shower outlets with modern stainless steel grates for both tiled and sheet flooring applications.

High flow rate of up to 1.2 litres per second

• Hygienic and easy clean stainless steel grate

• Top access trap design for fast and easy cleaning

Long life expectancy with durable epoxy coated body

40 or 110mm universal connection with vertical spigots

Product List

Vertical spigot - Sheet flooring

  • Marley Alutec shower outlet vertical spigot sheet flooring DF212
  • Marley Alutec shower outlet vertical spigot sheet flooring dimensions DF212

Quantity

Add
Code Dimensions (mm)
DF212 A: 200 x B: 170 x C: 108 x D: 47 x E: 43 x F: 110

Horizontal spigot - Sheet flooring

  • Marley Alutec shower outlet horizontal spigot sheet flooring DF217
  • Marley Alutec shower outlet horizontal spigot sheet flooring dimensions DF217

Quantity

Add
Code Dimensions (mm)
DF217 A: 200 x B: 170 x C: 108 x D: 47 x E: 43

Vertical spigot - Tiled flooring

  • Marley Alutec shower outlet vertical spigot tiled flooring DF232
  • Marley Alutec shower outlet vertical spigot tiled flooring dimensions DF232

Quantity

Add
Code Dimensions (mm)
DF232 A: 200 x B: 170 x C: 150 x D: 108 x E: 47 x F: 43 x G: 110

Horizontal spigot - Tiled flooring

  • Marley Alutec shower outlet horizontal spigot tiled flooring DF237
  • Marley Alutec shower outlet horizontal spigot tiled flooring dimensions DF237

Quantity

Add
Code Dimensions (mm)
DF237 A: 200 x B: 170 x C: 150 x D: 108 x E: 47 x F: 43
Requirements List
Requirements List

Add product qty and all relevant information to your requirement list ready to send for an estimate

Request an Estimate Remove All

Welcome to Alutec

Alutec is the UK leader in innovative aluminium rainwater and eaves drainage solutions.
