Outlet Accessories

Outlet accessories

Outlet accessories

Comprehensive range of accessories for use with Alutec roof, balcony and car park outlets

Product List

Refurbishment adaptor

  • Marley Alutec roof outlet refurbishment adaptor DRH8

Enables 75mm Ø spigot to push into existing 100mm Ø pipe

Quantity

Add
Code Connection Size (mm)
DRH8 82

Threaded adaptor

  • Marley Alutec roof outlet threaded adaptor DRA3 DRA4, DRA6

For use with threaded outlets to eliminate mechanical joints in concealed voids or concrete slabs. Suitable for connection to PVCu and cast iron

Quantity

Add
Code Dimensions (mm) Connection Size (mm)
DRA2 A: 500 60

Quantity

Add
Code Dimensions (mm) Connection Size (mm)
DRA3 A: 500 82

Quantity

Add
Code Dimensions (mm) Connection Size (mm)
DRA4 A: 500 110

Quantity

Add
Code Dimensions (mm) Connection Size (mm)
DRA6 A: 500 160

Extension ring - Roof outlet

  • Marley Alutec roof outlet extension ring DRE3 DRE4

For use with roof outlets to raise the height of the grating above the level of the waterproof membrane in applications such as green roofs or paved areas

Quantity

Add
Code Dimensions (mm) Connection Size (mm)
DRE3 A: 125 50 & 75

Quantity

Add
Code Dimensions (mm) Connection Size (mm)
DRE4 A: 125 100 & 150

Extension ring - Balcony outlet

  • Marley Alutec balcony outlet extension ring DRE6

For use with balcony outlets to raise the height of the grating above the waterproof membrane

Quantity

Add
Code Dimensions (mm) Connection Size (mm)
DRE6 A: 117 50, 75 & 100

Extension ring - Gully outlet

  • Marley Alutec gully outlet extension ring DRE7

For use with Alutec Gully outlets to raise the height of the grating above the waterproof membrane

Quantity

Add
Code Dimensions (mm) Connection Size (mm)
DRE7 A: 125 75 & 100

Terrace grate

  • Marley Alutec roof outlet terrace grate DRG8

For use in paving slabs, tiled or brick paviour areas in conjunction with Extension ring DRE3 / DRE4

Quantity

Add
Code Description Dimensions (mm)
DRG8 Load rating 1.5 tonnes A: 230 x B: 16

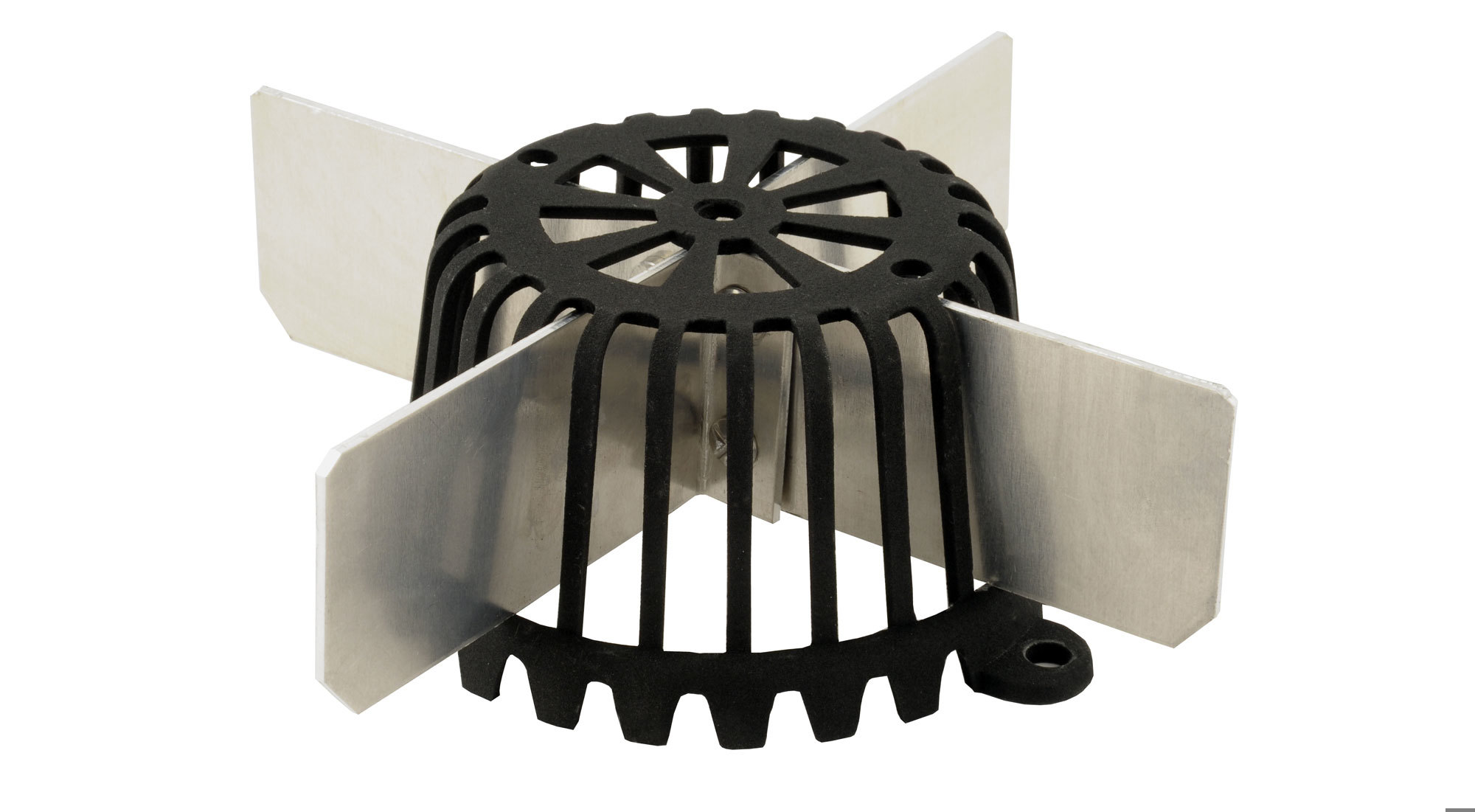

Anti-vortex fin

  • Marley Alutec roof outlet anti-vortex fin DRH6 DRH7

For use with Alutec roof outlets where maximum flow rate is required. Dome grate not included.

Quantity

Add
Code Dimensions (mm) Connection Size (mm)
DRH6 A: 230 x B: 70 50 & 75

Quantity

Add
Code Dimensions (mm) Connection Size (mm)
DRH7 A: 285 x B: 70 100 & 150
Requirements List
Requirements List

Add product qty and all relevant information to your requirement list ready to send for an estimate

Request an Estimate Remove All
