Balcony Outlets

Balcony outlets

Balcony outlets

Comprehensive range – Designs to cover all applications

50 year life expectancy – Made from marine grade aluminium for ultimate protection against corrosion, even in coastal or polluted environments

• Industry leading flow rate performance across the range

Near zero maintenance – grates prevent debris entering the outlet

Durable and strong – Made from heavy grade cast aluminium for ultimate strength and durability

Product List

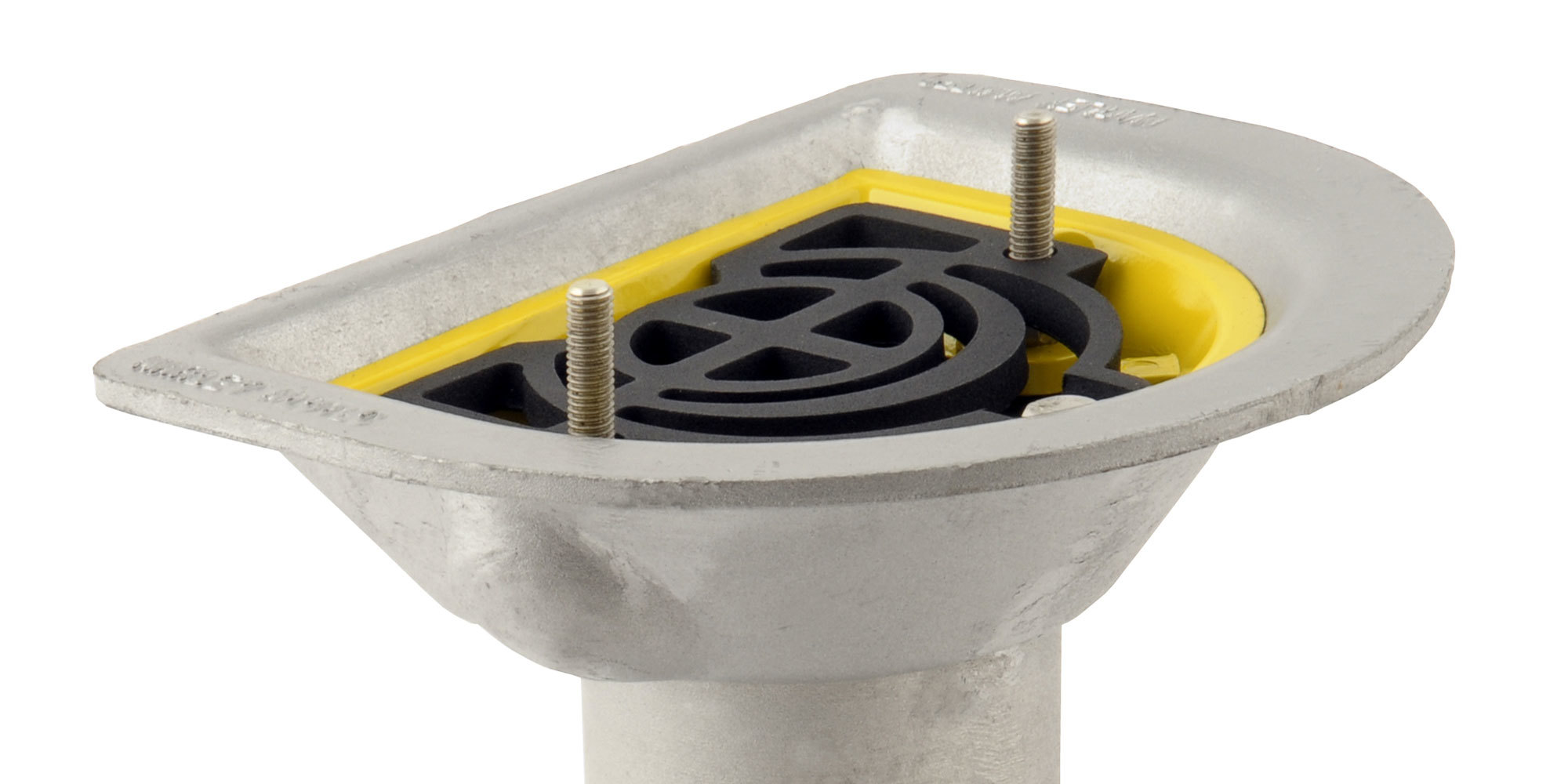

Balcony outlet

  • Marley Alutec balcony outlet DR460
  • Marley Alutec balcony outlet dimensions DR460

Quantity

Add
Code Description Dimensions (mm) Connection Size (mm) Nominal Size (mm)
DR260 Load class K3 A: 230 x B: 190 x C: 50 x D: 265 x E: 240 x F: 85 x G: 130 x H: 60 60 50

Quantity

Add
Code Description Dimensions (mm) Connection Size (mm) Nominal Size (mm)
DR360 Load class K3 A: 230 x B: 190 x C: 50 x D: 265 x E: 240 x F: 85 x G: 260 x H: 83 82 75

Quantity

Add
Code Description Dimensions (mm) Connection Size (mm) Nominal Size (mm)
DR460 Load class K3 A: 230 x B: 190 x C: 50 x D: 265 x E: 240 x F: 85 x G: 260 x H: 110 110 100

Shallow balcony outlet

  • Marley Alutec shallow balcony outlet DR265
  • Marley Alutec shallow balcony outlet dimensions DR365

Ideal for refurbishment projects

Quantity

Add
Code Description Dimensions (mm) Connection Size (mm) Nominal Size (mm)
DR265 Load class K3 A: 215 x B: 172 x C: 55 x D: 172 x E: 152 x F: 220 x G: 60 60 50

Quantity

Add
Code Description Dimensions (mm) Connection Size (mm) Nominal Size (mm)
DR365 Load class K3 A: 215 x B: 172 x C: 55 x D: 172 x E: 152 x F: 220 x G: 83 82 75
Requirements List
Requirements List

Add product qty and all relevant information to your requirement list ready to send for an estimate

Request an Estimate Remove All

Welcome to Alutec

Alutec is the UK leader in innovative aluminium rainwater and eaves drainage solutions.
