Vandal Resistant Square Downpipe Systems

Vandal Resistant square aluminium downpipe systems

Vandal Resistant square aluminium downpipe systems

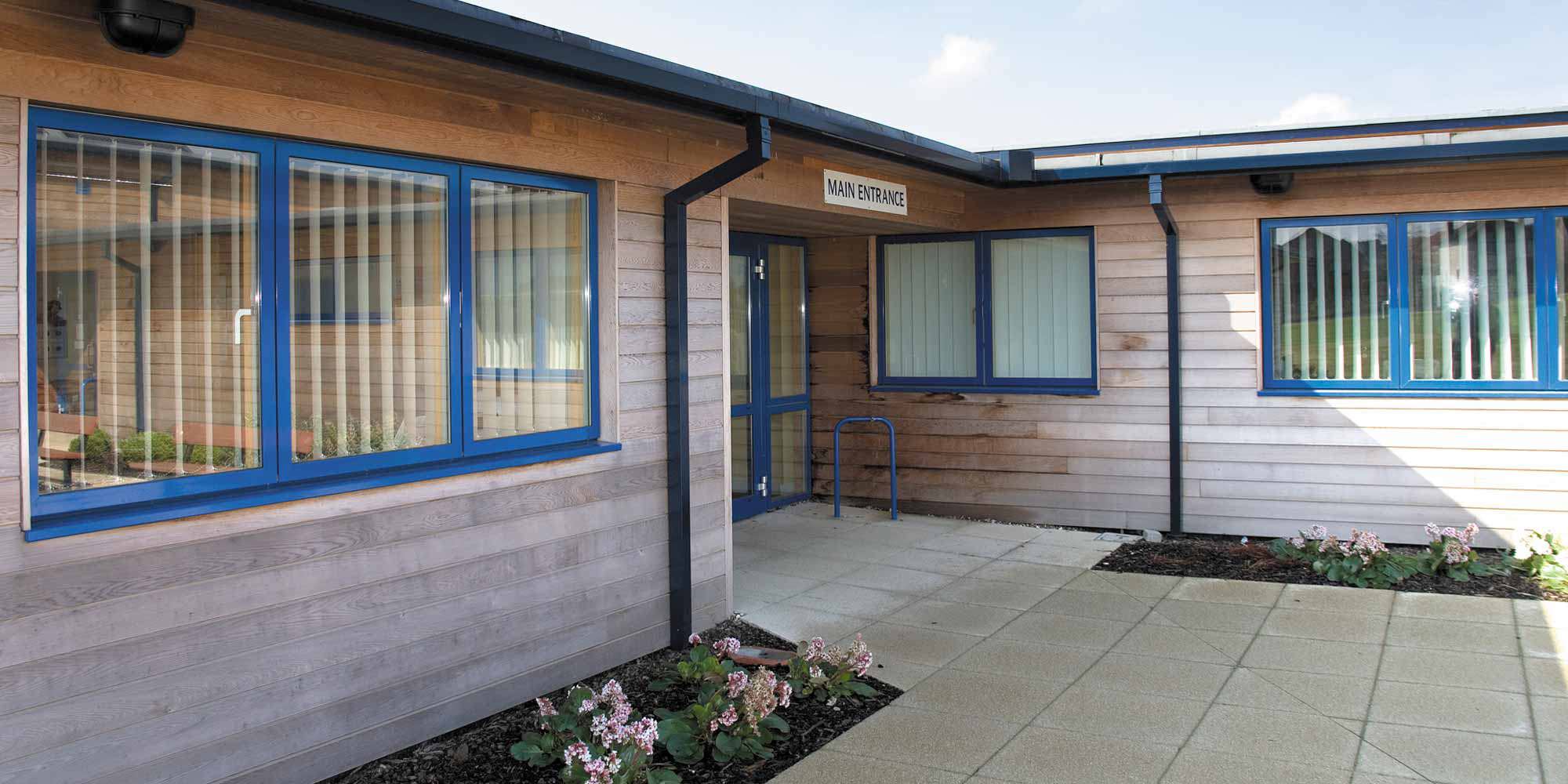

Range of vandal resistant aluminium downpipe systems designed for use in public or higher security areas where Secured By Design principles are key

• 72x72mm and 102x102mm square sizes

Concealed back to wall fixing with no projecting profiles render it non-climbable and vandal resistant

Life expectancy of 50 years or more

• Marine grade aluminium throughout. Highly corrosion resistant, it will never rust or need repainting

24 standard colours and hundreds more available on request

• Compatible with Evolve and Aligator gutter ranges (gutter dependent)

Product List

Downpipe

  • Marley Alutec Vandal Resistant square aluminium downpipe RVR313

To ensure your Alutec system achieves its 50 year life expectancy, don't forget to order Alutec Joint sealant and austenitic fixings. Go to Sundries, Tools & Accessories for a full listing. For direct connection to gutter outlet or hopper, use pipe socket RSR320NE or RSR420NE

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RVR311 72x72 1000 A: 100 x B: 50 C: 72

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RVR312 72x72 2000 A: 100 x B: 50 C: 72

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RVR313 72x72 3000 A: 100 x B: 50 C: 72

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RVR411 102x102 1000 A: 100 x B: 50 C: 102

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RVR412 102x102 2000 A: 100 x B: 50 C: 102

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RVR413 102x102 3000 A: 100 x B: 50 C: 102

Internal pipe joint spigot

  • Marley Alutec Vandal Resistant square aluminium downpipe pipe joint spigot RVR320

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR320 72x72 A: 70

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR420 102x102 A: 70

Bend

  • Marley Alutec Vandal Resistant square aluminium downpipe bend RVR332

Fixing plate included for on site positioning. For direct connection to gutter outlet, use pipe socket RSR320NE or RSR420NE. All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR330 72x72 A: 150 x B: 150 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR332 72x72 A: 128 x B: 128 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR335 72x72 A: 110 x B: 110 135

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR430 102x102 A: 198 x B: 198 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR432 102x102 A: 154 x B: 154 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR435 102x102 A: 141 x B: 141 135

Branch

  • Marley Alutec Vandal Resistant square aluminium downpipe branch RVR342

A fixing plate with fixing kit included for on site positioning to required handling. All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR340 72x72 A: 260 x B: 114 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR342 72x72 A: 260 x B: 130 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR345 72x72 A: 260 x B: 160 135

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR440 102x102 A: 280 x B: 140 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR442 102x102 A: 280 x B: 156 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR445 102x102 A: 280 x B: 164 135

Shoe

  • Marley Alutec Vandal Resistant square aluminium downpipe shoe RVR350

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR350 72x72 A: 101 x B: 270 120

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR450 102x102 A: 140 x B: 270 120

Access pipe

  • Marley Alutec Vandal Resistant square aluminium downpipe access pipe RVR360

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR360 72x72 A: 300 x B: 140 x C: 105

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR460 102x102 A: 300 x B: 140 x C: 105

Fixing plate

  • Marley Alutec Vandal Resistant square aluminium downpipe fixing plate RVR380

Supplied with complete fixing kit

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR380 72x72 A: 150 x B: 68 x C: 38

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR480 102x102 A: 150 x B: 98 x C: 58

Wall offset

  • Marley Alutec Vandal Resistant square aluminium downpipe fixed wall offset

Provide dimensions, A to E as indicated on drawing. A fixing plate with fixing kit is included for on site positioning to required handing. For direct connection to gutter outlet or hopper use pipe socket RSR320NE or RSR420NE.

Quantity

Add
Code
Wall offset

Adjustable eaves offset

  • Marley Alutec Vandal Resistant square aluminium downpipe adjustable eaves offset RVR3945

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
RVR3945 72x72 B: 82 x C: 60 112.5 75 450

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
RVR3990 72x72 A: 82 x B: 60 112.5 75 900

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
RVR4945 102x102 A: 82 x B: 60 112.5 109 450

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
RVR4990 102x102 A: 82 x B:60 112.5 109 900

Drain connector (slip socket)

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe drain connector RVR170

Adapts to 110mm Ø drain pipe socket. All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR370 72x72 A: 85 x B: 85 x C: 65 x D: 41 x E: 30

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR470 102x102 A: 115 x B: 115 x C: 60 x D: 41 x E: 30

Hopper head (standard)

  • Marley Alutec Vandal Resistant square aluminium downpipe hopper head RH124

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
RH124 72x72 A: 250 x B: 180 x C: 180 x D: 42

Quantity

Add
Code Size (mm) Dimensions (mm)
RH126 102x102 A: 250 x B: 180 x C: 180 x D: 54
