Vandal Resistant Rectangular Downpipe System

Vandal Resistant aluminium downpipe system

Vandal Resistant aluminium downpipe system

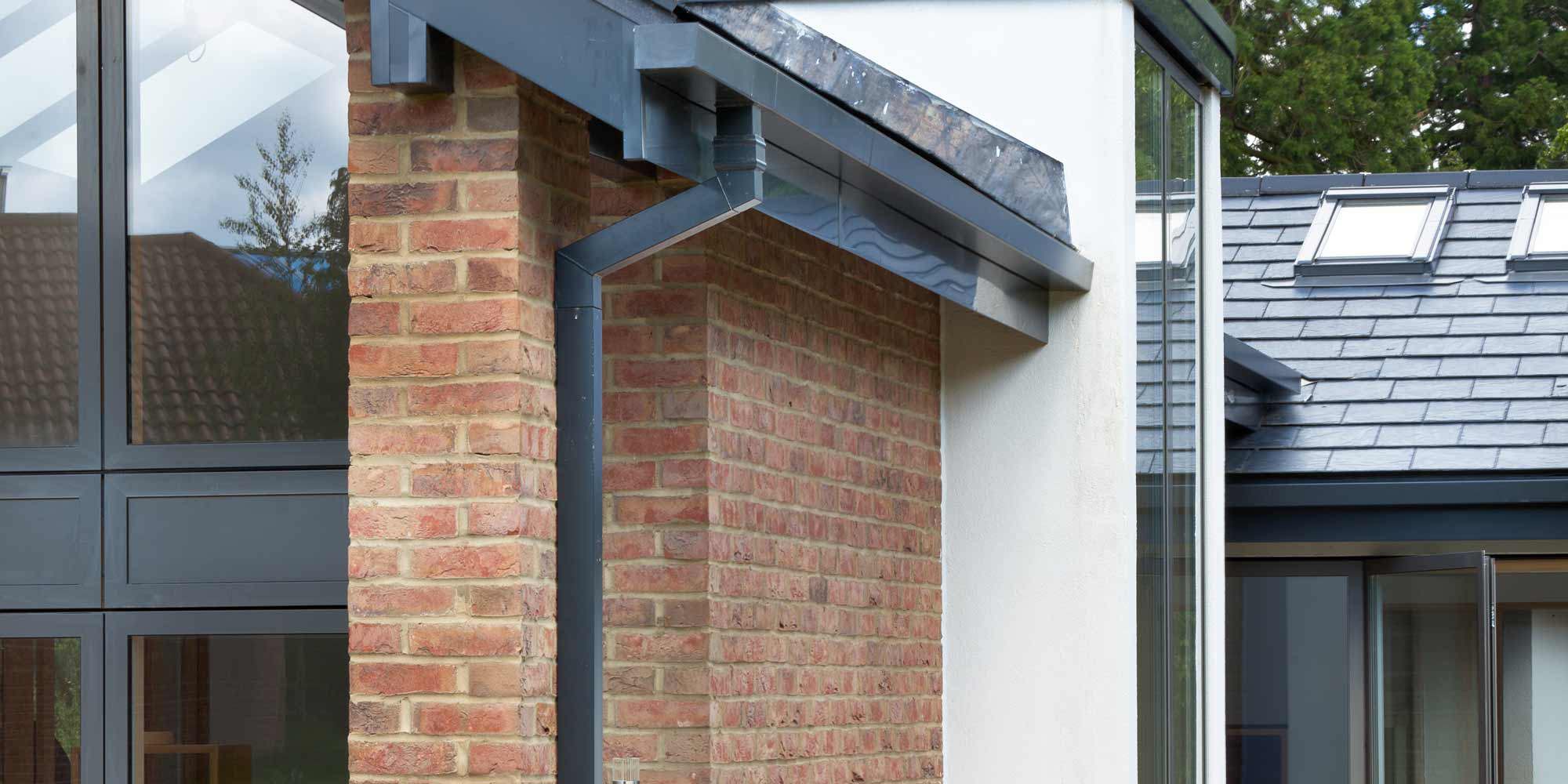

Vandal resistant rectangular downpipe system designed for use in public or higher security areas where Secured By Design principles are key

• 102x76mm rectangular size

Concealed back to wall fixing with no projecting profiles render it non-climbable and vandal resistant

Life expectancy of 50 years or more

• Marine grade aluminium throughout. Highly corrosion resistant, it will never rust or need repainting

24 standard colours and hundreds more available on request

• Compatible with the Aligator gutter range (gutter dependent)

Product List

Downpipe

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe RVR113

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RVR111 102x76 1000 A: 100 x B: 50 x C: 102

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RVR112 102x76 2000 A: 100 x B: 50 x C: 102

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RVR113 102x76 3000 A: 100 x B: 50 x C:102

Internal pipe joint spigot

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe pipe joint spigot RVR113

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR120 102x76 A: 70

Bend

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe bend RVR132

Fixing plate included for on site positioning. For 102x76mm state if left/right hand projection is required. For direct connection to gutter outlet, use pipe socket RVR20NE. All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR130 102x76 A: 175 x B: 175 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR132 102x76 A: 150 x B: 150 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR135 102x76 A: 132 x B: 132 135

Branch

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe branch RVR142

A fixing plate with fixing kit included for on site positioning to required handling. For 102x76mm state if left/right hand projection is required. All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR140 102x76 A: 280 x B: 140 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR142 102x76 A: 280 x B: 156 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR145 102x76 A: 280 x B: 164 135

Shoe

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe shoe RVR150

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RVR150 102x76 A: 108 x B: 270 120

Access pipe

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe access pipe RVR160

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR160 102x76 A: 300 x B: 140 x C: 105

Fixing plate

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe fixing plate RVR180

Supplied with complete fixing kit

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR180 102x76 A: 150 x B: 98 x C: 58

Wall offset

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe wall offset

Provide dimensions, A to E as indicated on drawing. A fixing plate with fixing kit is included for on site positioning to required handing. For 102 x 76mm state if left/right handed or front/rear projection is required. For direct connection to gutter outlet or hopper use pipe socket RVR120NE. All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code
Wall offset

Adjustable eaves offset

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe adjustable eaves offset RVR1945

Other offset projections available on request. For 102x76mm size, Add R or L after product code if right or left hand projection is required, i.e. RVR1945R. All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
RVR1945 102x76 A: 82 x B: 60 112.5 75 450

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
RVR1990 102x76 A: 82 x B: 60 112.5 75 900

Drain connector (slip socket)

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe drain connector RVR170

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
RVR170 102x76 A: 90 x B: 116 x C: 60 x D: 41 x E: 30

Hopper head (standard)

  • Marley Alutec Vandal Resistant rectangular aluminium downpipe hopper head RH125

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
RH125 102x76 A: 250 x B: 180 x C: 180 x D: 41
