Tudor Circular Downpipe Systems

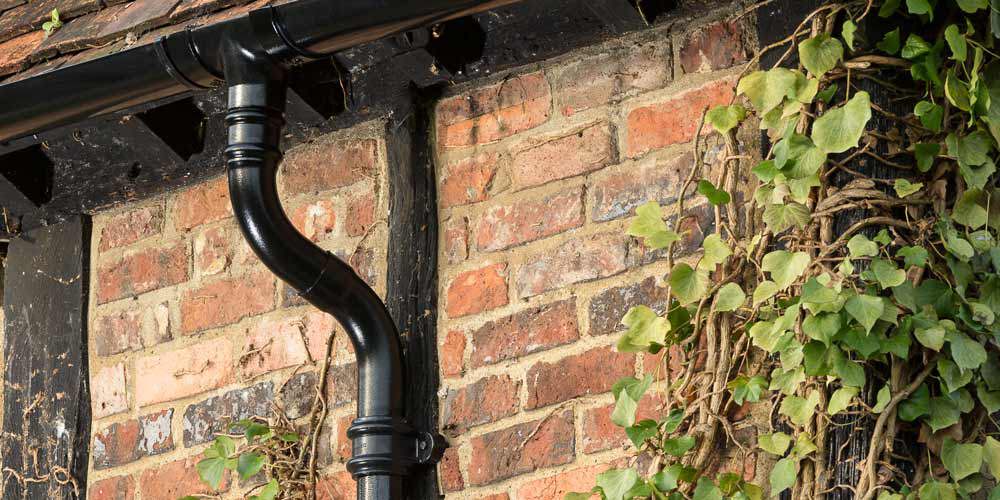

Tudor circular aluminium downpipe systems

Tudor circular aluminium downpipe systems

The ultimate low maintenance replacement downpipe system for cast iron downpipes on listed, heritage or period style new build properties.

• 63mm, 76mm & 102mm circular sizes

Life expectancy of 50 years or more

65% lighter than cast iron, making it easier and safer to handle on site

• Marine grade aluminium throughout. Highly corrosion resistant, it will never rust or need repainting

24 standard colours and hundreds more available on request

• Available at a lower price in the popular Heritage Black finish, which accurately replicates the appearance of cast iron

• Compatible with Evolve, Traditional and Aligator gutter ranges

Product List

Downpipe

  • Marley Alutec Tudor circular aluminium downpipe TR313

To ensure your Alutec system achieves its 50 year life expectancy, don't forget to order Alutec Joint sealant and austenitic fixings. Go to Sundries, Tools & Accessories for a full listing

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
TR206 63 1830 A: 110 x B: 145 x C: 45

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
TR212 63 2000 A: 110 x B: 145 x C: 45

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
TR213 63 3000 A: 110 x B: 145 x C: 45

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
TR306 76 1830 A: 115 x B: 160 x C: 52

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
TR312 76 2000 A: 115 x B: 160 x C: 52

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
TR313 76 3000 A: 115 x B: 160 x C: 52

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
TR406 102 1830 A: 141 x B: 186 x C: 65

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
TR412 102 2000 A: 141 x B: 186 x C: 65

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
TR413 102 3000 A: 141 x B: 186 x C: 65

Pipe socket

  • Marley Alutec Tudor circular aluminium downpipe pipe socket TR320

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Description Size (mm) Dimensions (mm)
TR220 Eared 63 A: 75 x B: 30

Quantity

Add
Code Description Size (mm) Dimensions (mm)
TR220NE Non Eared 63 A: 75 x B: 30

Quantity

Add
Code Description Size (mm) Dimensions (mm)
TR320 Eared 76 A: 81 x B: 30

Quantity

Add
Code Description Size (mm) Dimensions (mm)
TR320NE Non Eared 76 A: 81 x B: 30

Quantity

Add
Code Description Size (mm) Dimensions (mm)
TR420 Eared 102 A: 94 x B: 30

Quantity

Add
Code Description Size (mm) Dimensions (mm)
TR420NE Non Eared 102 A: 94 x B: 50

Bend

  • Marley Alutec Tudor circular aluminium downpipe bend TR332

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR230 63 A: 150 x B: 240 x C: 70 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR232 63 A: 190 x B: 230 x C: 70 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR330 76 A: 180 x B: 250 x C: 70 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR332 76 A: 220 x B: 250 x C: 70 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR430 102 A: 290 x B: 325 x C: 94 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR432 102 A: 230 x B: 270 x C: 94 112.5

Branch

  • Marley Alutec Tudor circular aluminium downpipe branch TR342

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR240 63 A: 215 x B: 115 x C: 110 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR242 63 A: 215 x B: 115 x C: 110 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR340 76 A: 250 x B: 138 x C: 112 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR342 76 A: 250 x B: 119 x C: 130 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR440 102 A: 260 x B: 150 x C: 110 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR442 102 A: 260 x B: 130 x C: 130 112.5

Shoe

  • Marley Alutec Tudor circular aluminium downpipe shoe TR350

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR250 63 A: 85 x B: 90 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR350 76 A: 103 x B: 106 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR450 102 A: 125 x B: 131 112.5

Access pipe

  • Marley Alutec Tudor circular aluminium downpipe access pipe TR360

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
TR260 63 A: 300 x B: 140 x C: 105

Quantity

Add
Code Size (mm) Dimensions (mm)
TR360 76 A: 300 x B: 140 x C: 105

Quantity

Add
Code Size (mm) Dimensions (mm)
TR460 102 A: 300 x B: 140 x C: 105

Pipe clip

  • Marley Alutec Tudor circular aluminium downpipe pipe clip TR380

Quantity

Add
Code Size (mm) Dimensions (mm)
TR280 63 A: 105 x B: 80 x C: 45

Quantity

Add
Code Size (mm) Dimensions (mm)
TR380 76 A: 118 x B: 93 x C: 52

Quantity

Add
Code Size (mm) Dimensions (mm)
TR480 102 A: 138 x B: 113 x C: 65

Fixed offset

  • Marley Alutec Tudor circular aluminium downpipe fixed offset TR2906

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR2903 63 A: 75 x B: 70 x C: 370 x D: 100 154

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR2904 63 A: 100 x B: 70 x C: 355 x D: 100 149

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR2906 63 A: 150 x B: 70 x C: 400 x D: 100 140

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR2909 63 A: 225 x B: 70 x C: 400 x D: 100 126

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR2912 63 A: 300 x B: 70 x C: 445 x D: 100 120

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR3903 76 A: 75 x B: 70 x C: 380 x D: 130 154

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR3904 76 A: 100 x B: 70 x C: 380 x D: 130 149

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR3906 76 A: 150 x B: 70 x C: 400 x D: 130 140

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR3909 76 A: 225 x B: 70 x C: 425 x D: 130 126

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR3912 76 A: 300 x B: 70 x C: 435 x D: 130 120

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR4903 102 A: 75 x B: 94 x C: 512 x D:150 164

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR4904 102 A: 100 x B: 94 x C: 516 x D: 150 158

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR4906 102 A: 150 x B: 94 x C: 566 x D: 150 151

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR4909 102 A: 225 x B: 94 x C: 616 x D: 150 142

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
TR4912 102 A: 300 x B: 94 x C: 656 x D: 150 130

Adjustable offset

  • Marley Alutec Tudor circular aluminium downpipe adjustable offset TR2945

All joints must be sealed using Alutec Joint sealant SC101. Non standard projections available on request

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
TR2945 63 B: 70 x C: 100 112.5 150 450

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
TR2990 63 B: 70 x C: 100 112.5 150 900

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
TR3945 76 B: 70 x C: 163 112.5 200 450

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
TR3990 76 B: 70 x C: 163 112.5 200 900

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
TR4945 102 B: 94 x C: 150 112.5 280 450

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
TR4990 102 B: 94 x C: 150 112.5 280 900

Rainwater diverter

  • Marley Alutec Tudor circular aluminium downpipe rainwater diverter TRD35

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
TRD25 63 A: 134 x B: 500 x C: 74 x D: 30

Quantity

Add
Code Size (mm) Dimensions (mm)
TRD35 76 A: 134 x B: 500 x C: 74 x D: 30

Hopper head (standard)

  • Marley Alutec Tudor circular aluminium downpipe hopper head TH102

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
TH101 63 A: 250 x B: 180 x C: 180 x D: 45

Quantity

Add
Code Size (mm) Dimensions (mm)
TH102 76 A: 250 x B: 180 x C: 180 x D: 52

Quantity

Add
Code Size (mm) Dimensions (mm)
TH103 102 A: 250 x B: 180 x C: 180 x D: 65

Hopper head (fluted)

  • Aluminium downpipe hopper head TH402 by Marley Alutec

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
TH401 63 A: 285 x B: 210 x C: 225 x D: 45 x E: 18

Quantity

Add
Code Size (mm) Dimensions (mm)
TH402 76 A: 285 x B: 210 x C: 225 x D: 52 x E: 18

Hopper head (ornamental)

  • Marley Alutec Tudor circular aluminium downpipe hopper head TH302

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
TH301 63 A: 410 x B: 190 x C: 185 x D: 45

Quantity

Add
Code Size (mm) Dimensions (mm)
TH302 76 A: 410 x B: 190 x C: 185 x D: 52

Quantity

Add
Code Size (mm) Dimensions (mm)
TH303 102 A: 410 x B: 190 x C: 185 x D: 65

Wall spacer

  • Marley Alutec Tudor circular aluminium downpipe wall spacer SC712

Wall spacer with a maximum 30mm projection. For increasing downpipe distance from wall

Quantity

Add
Code Description
SC712 30mm projection
