Traditional Square Downpipe Systems

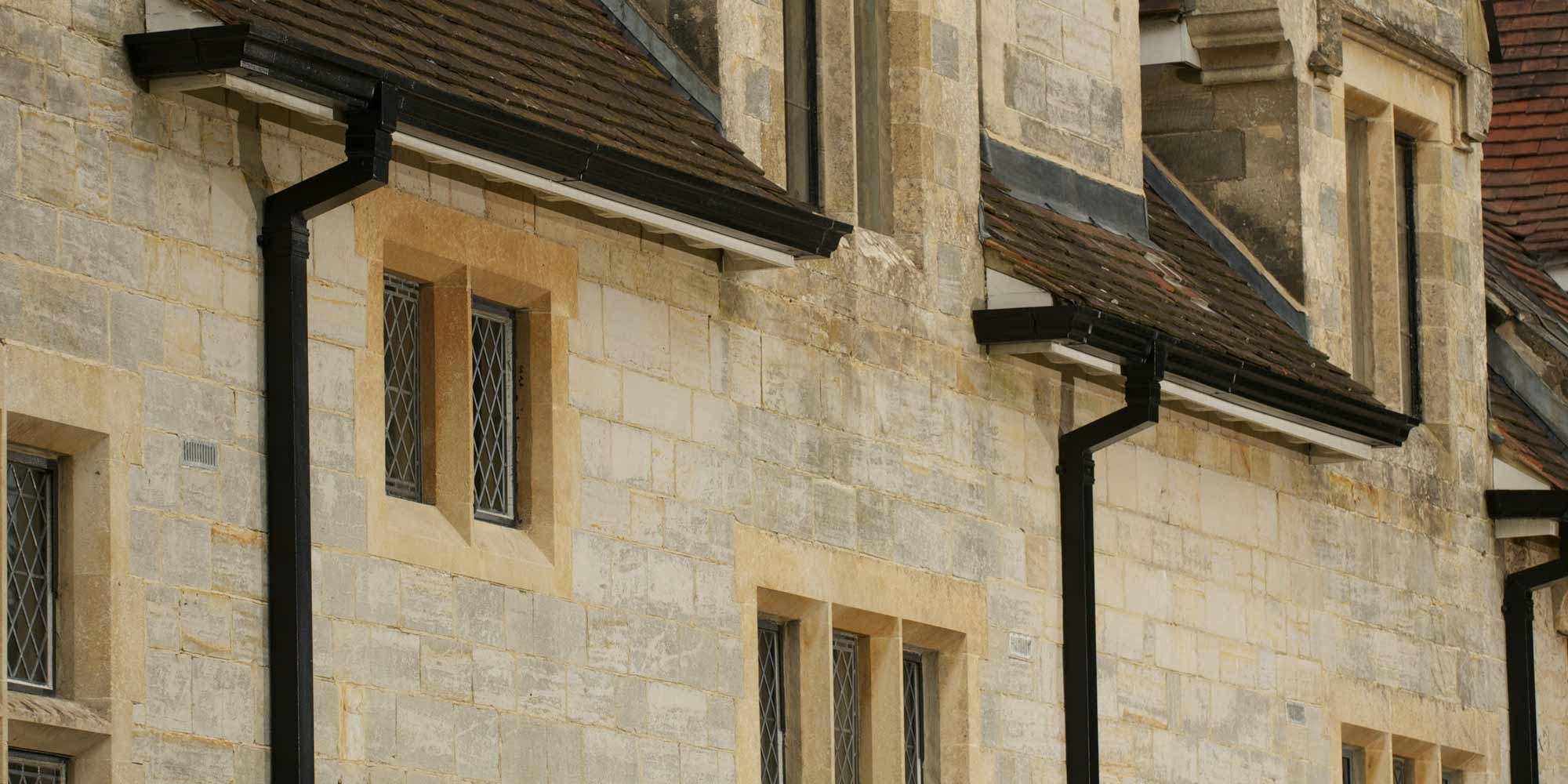

Traditional Square aluminium downpipe systems

Traditional Square aluminium downpipe systems

Cast socketed aluminium downpipe systems suitable for both modern and traditional buildings

• 72x72mm and 102x102mm square sizes

Life expectancy of 50 years or more

65% lighter than cast iron, making it easier and safer to handle on site

• Marine grade aluminium throughout. Highly corrosion resistant, it will never rust or need repainting

24 standard colours and hundreds more available on request

• Compatible with Evolve, Traditional and Aligator gutter ranges (gutter dependent)

Product List

Downpipe

  • Marley Alutec Traditional square aluminium downpipe RSR313

To ensure your Alutec system achieves its 50 year life expectancy, don't forget to order Alutec Joint sealant and austenitic fixings. Go to Sundries, Tools & Accessories for a full listing. Add NE after product code for non eared pipe, i.e. RSR313NE

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RSR311 72x72 1000 A: 125 x B: 151 x C: 42

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RSR312 72x72 2000 A: 125 x B: 151 x C: 42

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RSR313 72x72 3000 A: 125 x B: 151 x C: 42

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RSR411 102x102 1000 A: 154 x B: 182 x C: 56

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RSR412 102x102 2000 A: 154 x B: 182 x C: 56

Quantity

Add
Code Size (mm) Length (mm) Dimensions (mm)
RSR413 102x102 3000 A: 154 x B: 182 x C: 56

Pipe socket

  • Marley Alutec Traditional square aluminium downpipe pipe socket RSR320

All joints must be sealed using Alutec Joint sealant SC101. Add NE after product code for non eared pipe, i.e. RSR120NE

Quantity

Add
Code Size (mm) Dimensions (mm)
RSR320 72x72 A: 80 x B: 83 x C: 83 x D: 40

Quantity

Add
Code Size (mm) Dimensions (mm)
RSR420 102x102 A: 80 x B: 112 x C: 112 x D: 40

Bend

  • Marley Alutec Traditional square aluminium downpipe bend RSR332

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR330 72x72 A: 150 x B: 150 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR332 72x72 A: 60 x B: 135 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR335 72x72 A: 43 x B: 110 135

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR430 102x102 A: 198 x B: 198 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR432 102x102 A: 75 x B: 155 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR435 102x102 A: 55 x B: 140 135

Branch

  • Marley Alutec Traditional square aluminium downpipe branch RSR342

All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR340 72x72 A: 260 x B: 140 x C: 114 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR342 72x72 A: 260 x B: 127 x C: 130 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR345 72x72 A: 260 x B: 95 x C: 160 135

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR440 102x102 A: 280 x B: 130 x C: 140 92.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR442 102x102 A: 280 x B: 112 x C: 156 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR445 102x102 A: 280 x B: 72 x C: 164 135

Shoe

  • Marley Alutec Traditional square aluminium downpipe shoe RSR350

All joints must be sealed using Alutec Joint sealant SC101. Add NE after product code for non eared pipe, i.e. RSR350NE

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR350 72x72 A: 96 x B: 100 120

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR450 102x102 A: 132 x B: 198 120

Access pipe

  • Marley Alutec Traditional square aluminium downpipe access pipe RSR360

All joints must be sealed using Alutec Joint sealant SC101. Add NE after product code for non eared pipe, i.e. RSR360NE

Quantity

Add
Code Size (mm) Dimensions (mm)
RSR360 72x72 A: 300 x B: 140 x C: 105

Quantity

Add
Code Size (mm) Dimensions (mm)
RSR460 102x102 A: 300 x B: 140 x C: 105

Pipe clip

  • Marley Alutec Traditional square aluminium downpipe pipe clip RSR380

Quantity

Add
Code Size (mm) Dimensions (mm)
RSR380 72x72 A: 103 x B: 128 x C: 25

Quantity

Add
Code Size (mm) Dimensions (mm)
RSR480 102x102 A: 134 x B: 159 x C: 25

Fixed offset

  • Marley Alutec Traditional square aluminium downpipe fixed offset RSR3903

All joints must be sealed using Alutec Joint sealant SC101. Non standard projections available on request

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR3903 72x72 A: 75 x B: 80 x C: 160 x D: 60 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR3904 72x72 A: 100 x B: 80 x C: 173 x D: 60 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR3906 72x72 A: 150 x B: 80 x C: 193 x D: 60 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR3909 72x72 A: 225 x B: 80 x C: 223 x D: 60 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR3912 72x72 A: 300 x B: 80 x C: 255 x D: 60 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR4903 102x102 A: 75 x B: 82 x C: 180 x D: 60 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR4904 102x102 A: 100 x B: 82 x C: 188 x D: 60 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR4906 102x102 A: 150 x B: 82 x C: 220 x D: 60 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR4909 102x102 A: 225 x B: 82 x C: 250 x D: 60 112.5

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0)
RSR4912 102x102 A: 300 x B: 82 x C: 258 x D: 60 112.5

Adjustable offset

  • Marley Alutec Traditional square aluminium downpipe adjustable offset RSR3945

All joints must be sealed using Alutec Joint sealant SC101. Non standard projections available on request

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
RSR3945 72x72 B: 82 x C: 60 112.5 75 450

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
RSR3990 72x72 B: 82 x C: 60 112.5 75 900

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
RSR4945 102x102 B: 82 x C: 60 112.5 100 450

Quantity

Add
Code Size (mm) Dimensions (mm) Angle (0) A Min (mm) A Max (mm)
RSR4990 102x102 B: 82 x C: 60 112.5 100 900

Drain connector (slip socket)

  • Marley Alutec Traditional square aluminium downpipe drain connector RSR370

Adapts to 110mm Ø drain pipe socket. All joints must be sealed using Alutec Joint sealant SC101

Quantity

Add
Code Size (mm) Dimensions (mm)
RSR370 72x72 A: 85 x B: 85 x C: 65 x D: 41 x E: 30

Quantity

Add
Code Size (mm) Dimensions (mm)
RSR470 102x102 A: 115 x B: 115 x C: 65 x D: 41 x E: 30

Rainwater diverter

  • Marley Alutec Traditional square aluminium downpipe rainwater diverter RSRD35

Quantity

Add
Code Size (mm) Dimensions (mm)
RSRD35 72x72 A: 98 x B: 30 x C: 500

Hopper head (standard)

  • Marley Alutec Traditional square aluminium downpipe hopper head RH104

Quantity

Add
Code Size (mm) Dimensions (mm)
RH104 72x72 A: 250 x B: 180 x C: 180 x D: 42

Quantity

Add
Code Size (mm) Dimensions (mm)
RH106 102x102 A: 250 x B: 180 x C: 180 x D: 54

Hopper head (fluted)

  • Aluminium downpipe hopper head RH404 by Marley Alutec

Quantity

Add
Code Size (mm) Dimensions (mm)
RH404 72x72 A: 285 x B: 210 x C: 225 x D: 42 x E: 18

Hopper head (ornamental)

  • Marley Alutec Traditional square aluminium downpipe hopper head RH304

Quantity

Add
Code Size (mm) Dimensions (mm)
RH304 72x72 A: 410 x B: 190 x C: 185 x D: 42

Quantity

Add
Code Size (mm) Dimensions (mm)
RH306 102x102 A: 410 x B: 190 x C: 185 x D: 56
